Description

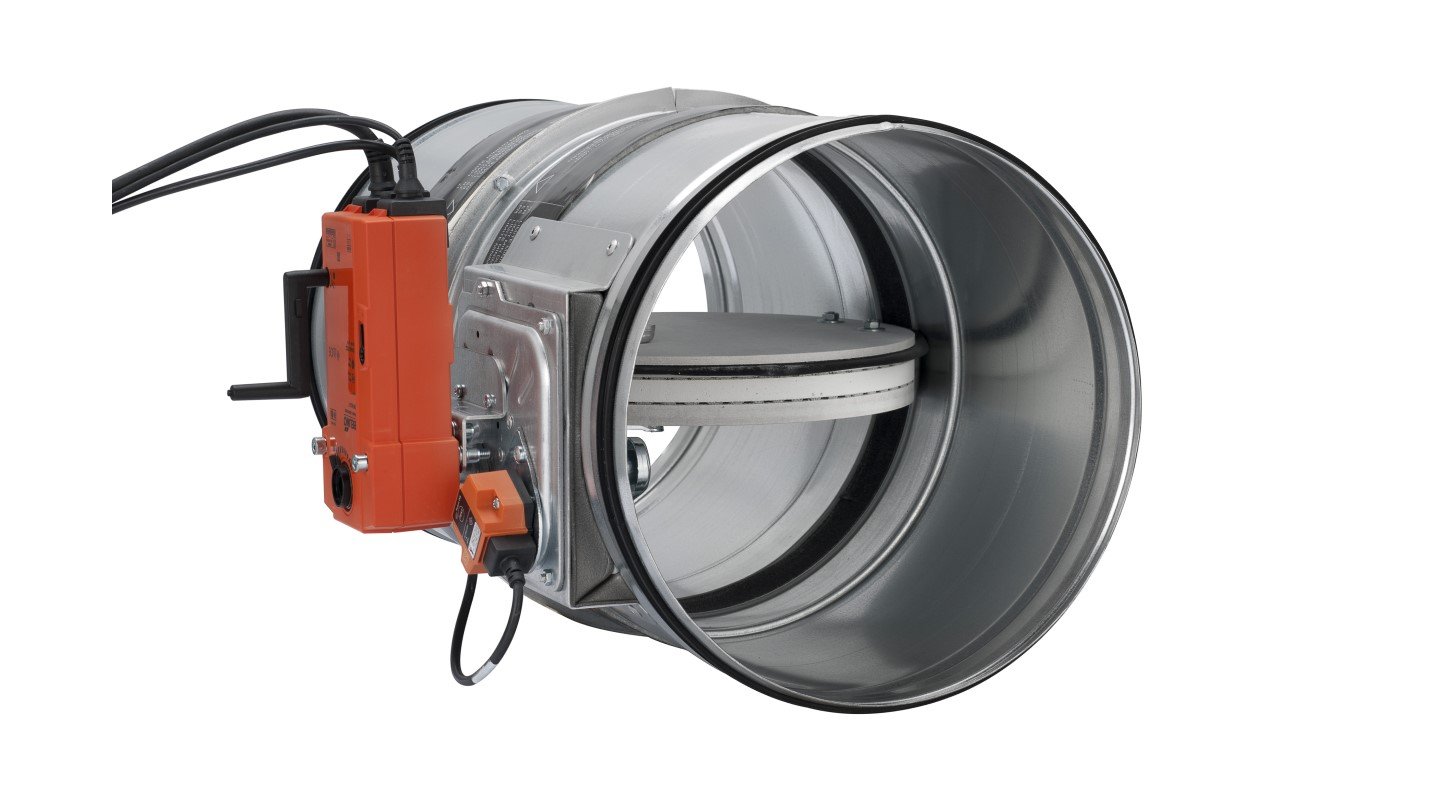

WH 45 Motorised Fire Damper
The Lindab WH 45 Motorised Fire Damper is an essential component for any HVAC system requiring fire protection. Designed to automatically close in the event of a fire, this damper helps prevent the spread of smoke and flames, ensuring safety and compliance with building regulations. The WH 45 is available in various diameters ranging from 200mm to 800mm, making it adaptable to different ventilation needs.
Equipped with high-performance Belimo actuators, the WH 45 ensures reliable operation and responsiveness, with options for both 24V and 230V power sources. The damper operates at a pressure rating of 500 Pa, providing robust resistance against airflow while maintaining safety standards. Its circular design allows for easy installation in existing ductwork and maximizes airflow efficiency when open.
Lindab WH 45 Motorised Fire Damper Key Features
- Motorised operation with Belimo actuators for reliable performance.
- Available in sizes from 200mm to 800mm to fit various applications.
- Pressure rating of 500 Pa ensures effective smoke and flame containment.
- Durable construction with galvanised steel for long-lasting use.
- Seamless integration into HVAC systems for enhanced safety.
Specifications
- Diameter Options: 200mm, 250mm, 300mm, 315mm, 355mm, 400mm, 450mm, 500mm, 560mm, 600mm, 630mm, 710mm, 800mm
- Model Variants: WH45 200 GALV VMB, WH45 200 GALV DMB, WH45 250 GALV VMB, WH45 250 GALV DMB, WH45 300 GALV VMB, WH45 300 GALV DMB, WH45 315 GALV VMB, WH45 315 GALV DMB, WH45 355 GALV VMB, WH45 355 GALV DMB, WH45 400 GALV VMB, WH45 400 GALV DMB
- Power Supply: 24V or 230V
- Pressure Rating: 500 Pa
